Aircraft SAF-AIR Drain valves
After 55 years of design and testing, SAF-AIR Products, Inc. is able to offer a wide range of unique fuel drain valves for the general aviation industry. One of the unique features of our fuel valves is that we use standard o-rings made of Viton® for sealing. This material can withstand a wide range of temperatures and is very durable.



The most common reason that fuel drain valves drip is due to dirt buildup in the fuel. The dirt collects in the lowest part of the fuel tank where the fuel valve is located. This dirt can cut the o-ring, or keep the valve from fully sealing. In SAF-AIR valves, the o-ring can be replaced when it starts to fail so you can continue to use the valve, rather than throwing it away.



You can contact us for parts of your aircraft and engine as oil & Fuel drains.
Fuel Valves
Push-Type Fuel Drain Valves



SAF-AIR Products, Inc. push-type fuel drain valves are close tolerance valves of simple design. These valves provide the most trouble-free operation of any other line of valves in the industry. SAF-AIR valves are manufactured with an o-ring placed on the stem to seal against a flat seat on the body. This design eliminates an area where dirt can gather, thus putting an end to the main cause of fuel drain valve drip. Models CAV-110 & CAV-110H-4 are popular choices to install on gascolators. FAA & PMA APPROVED.



Models & Compatibility



  • MODEL CAV-110 1/8" NPT for Cessna 310 tip tanks; Mooney

    Mark 20 and 20A; all Ercoupe models; Bellanca, Taylorcraft model B; Stinson 108, 108-1, 108-2, 108-3; Voyager model 10 and 10A; Navion; Waco VK series and UPF; and Sea Bee. Fits all standard gascolators.

  •

  • MODEL CAV-160 1/4" NPT for Piper models J-3, J-4, PA-11,

    -12, -14, -25, -16, -17, -18, -20, -22, -23, -15 and -28 Tri-Pacer; Apache; Champion; Aeronca; Cessna T-50 and earlier 120 and 140 models; and Beechcraft AT-11 and C-18S.

  •

  • MODEL CAV-170 7/16-20 NF-3 for all Cessna late 140A

    models, 150, 170, 170A, 170B, 172 and 175.

  • MODEL CAV-180 3/8-24 NF-3 for Cessna 180, 182, 185, 190,

    195, 205, 210, 310, 310A, 310B, 310C and 336.

  •

  • CAV-110H-4, CAV-160H-4, CAV-170H-4, CAV-180H-4



    All four models come witd 1/4" hose end.

  •

    Specifications
  • MATERIAL: 360 Brass
  • FINISH: Natural
  • TEMPERATURE: -60° to +260°F (-51° to +127°C)
  • O-RINGS: All valves M83248/1 Size -006 CAV-170 Size -012,

    CAV-180 Size -011

  • PRESSURE: 60 PSI max
  •

    CAV-110 (1/8 NPT)



    CAV-150H5



    CAV-165H5

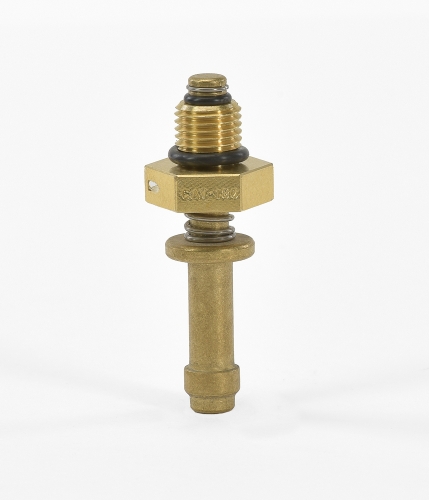

    CAV-180H-4



    CAV-110H-4



    CAV-160 (1/4 NPT)



    CAV-170 (7/16-20)



    CAV-150



    CAV-160H-4



    CAV-170H-4



    CAV-150H-4



    CAV-165



    CAV-180 (3/8-24)

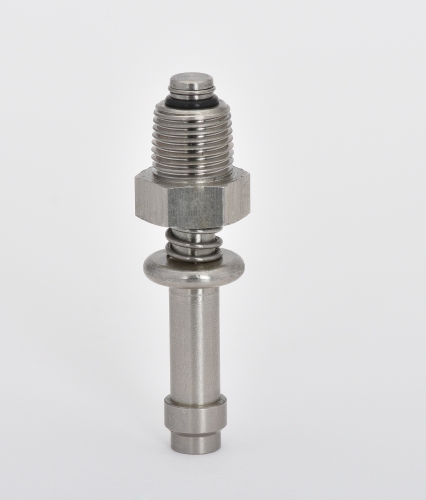

    110HSS



    180SS



    110SS



    160SS



    170SS

    Stainless Steel Push-Type Fuel Drain Valves
    SAF-AIR Products, Inc. designed its line of flush-mounted fuel drain valves to be an exact replacement for the Auto Valve F391 line of flush fuel drain valves. Unlike the Auto Valve, SAF-AIR valves can be rebuilt. These valves offer a dependable, low-cost solution when a flush mount is needed. These valves are now assembled with an added safety feature- we are now crimping the top of the valves after they are assembled. FAA & TSO-C76 APPROVED.



    FEATURES:



    - All valves can be rebuilt, simply remove a "C" clip



    - Standard fuel resistant Viton® o-rings included



    - Push-to-test



    - A clean, no-mess way to test fuel



    Specifications
  • MATERIAL: 1144 Steel
  • FINISH: Cadmium Plate QQ-P-416
  • TEMPERATURE: -60° to +260°F (-51° to +127°C)
  • O-RINGS: All valves M83248/1 Size -005 SA72 Size -012, SA32

    Size -011, SA82 Size -015

  • PRESSURE: 60 PSI max
  • Lock Open Fuel Drain Valves
    SAF-AIR Products, Inc. has taken its very dependable fuel drain valve and added a new feature – it locks in the open position! This valve makes the operation of the pre-flight check for contamination and water in the fuel system very easy. This valve is so unique that SAF-AIR Products, Inc. received a United States patent on its design. Models 1250 & 1250H are popular choices to install on gascolators. FAA & TSO-C76 APPROVED.



    FEATURES:



    - Eight models in two styles, with or without 1/4" hose adapter



    - All valves can be rebuilt



    - New feature - it locks in the open position



    - Standard fuel resistant Viton® o-rings included



    - Push-to-test, or push-and-turn to lock open



    - Effortless operation with sure grip knob



    - Double-sealed to prevent leakage



    Specifications
  • MATERIAL: 360 Brass
  • FINISH: Natural
  • TEMPERATURE: -60° to +260°F (-51° to +127°C)
  • O-RINGS: All valves M83248/1 Size -006
  • PRESSURE: 60 PSI max
  •

    4375 (7/16-20)



    3750 (3/8-24)



    1500H



    2500 (1/4/NPT)



    1500



    3750H



    B187 (1/8 NPT)



    SA53s (7/16-20)



    SA14 (1/4 NPT)



    SA72 (7/16-20)



    SA18 (1/8 NPT)



    SA82 (1/2-20)



    SA32 (3/8-24)



    SA187 (1/8 NPT)

    Flush-Mounted Fuel Drain Valves
    SAF-AIR Products, Inc. designed its line of flush-mounted fuel drain valves to be an exact replacement for the Auto Valve F391 line of flush fuel drain valves. Unlike the Auto Valve, SAF-AIR valves can be rebuilt. These valves offer a dependable, low-cost solution when a flush mount is needed. These valves are now assembled with an added safety feature- we are now crimping the top of the valves after they are assembled. FAA & TSO-C76 APPROVED.



    FEATURES:



    - All valves can be rebuilt, simply remove a "C" clip



    - Standard fuel resistant Viton® o-rings included



    - Push-to-test



    - A clean, no-mess way to test fuel



    Specifications
  • MATERIAL: 1144 Steel
  • FINISH: Cadmium Plate QQ-P-416
  • TEMPERATURE: -60° to +260°F (-51° to +127°C)
  • O-RINGS: All valves M83248/1 Size -005 SA72 Size -012, SA32

    Size -011, SA82 Size -015

  • PRESSURE: 60 PSI max
